General Description

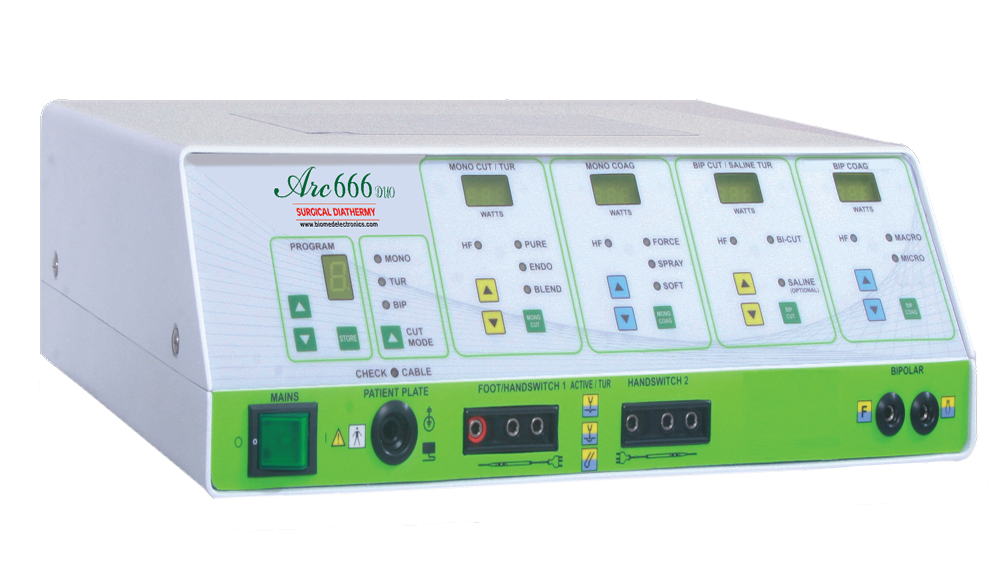

Programmable Diathermy with Dual Outputs Arc 666 Duo is a programmable microprocessor based surgical diathermy. It is suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It allows simultaneous use by two surgical teams on a single patient as it has two monopolar outputs through hand switch pencils. Specialised functions include Endo cut / TUR, in monopolar mode forced / soft / spray coag, bipolar saline cutting, bipolar micro / macro coag, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, programmable memory, handswitched output etc.

Technical Specifications
  • HF Power Display: 3 digit LED display
  • HF Power control: Digital control in small increments
Microprocessor Based Programmable Memory
  • Both HF power settings & Advanced Functions can be preprogramed and recalled from memory
  • No: Programs : 10
Monopolar cut
  • Cut : 400 watts (variable)
  • Blend : By dedicated switching
  • Endo : By dedicated switching
  • TUR : By dedicated switching
  • Rated frequency : 500 KHz
Monopolar coagulation
  • Forced Coag : 120 watts (variable)
  • Spray Coag : 120 watts (variable)
  • Soft Coag : 120 watts (variable)
  • Rated frequency : 500 KHz
Bipolar Coagulation
  • Macro Coag : 120 watts (variable)
  • Micro Coag : 120 watts (variable)
  • Vessel seal : 120 watts (variable)
  • Rated frequency : 1MHz
Bipolar Cut
  • Cut : 100 watts (variable)
  • Saline Cut : 200 watts (variable)
  • Rated frequency : 1MHz
TURP/underwater cutting:
    Monopolar outputs same as given above. HF output optimized for TURP
Handswitched output 1 & 2 :
    Monopolar outputs same as given above
Laparoscopy output:
    Monopolar & bipolar outputs same as given above.
Line voltage fluctuation compatibility
  • Working range : Steady HF output for line voltages from 170 to 250 volts, 50 Hz
  • Maximum range : Steady HF output for line voltages from 200 to 250 volts, 50 Hz
Internal Power supply: SMPS ( Physical Dimensions)
  • Size : 450mm x 390mm x 118mm
  • Weight : 9.5 Kgs
  • Power consumption : 700 Watts (230V, 50Hz)
  • Programming facility for power and advanced functions enabled
  • Two Monopolar Outputs via handswitch Pencil for simultaneous use by two surgical teams.
  • Independent footswitch for bipolar coagulation.
  • Bipolar Saline under water cutting enabled.
  • Dedicated Endo Cut Mode for gastro use.
  • Dedicated TUR mode for urology use.
  • Three types of monopolar coagulation
  • Soft coag for char free contact coagulation.
  • Forced coag for sealing bleeders.
  • Spray coag for wide area superficial non-contact coagulation.
  • Two modes of bipolar coagulation.
  • Macro coagulation for powerful wide area contact coagulation.
  • Micro coagulation for pin point coagulation
  • HF output power can be set digitally in small increments
  • Steady HF output at set value even under line voltage fluctuating conditions
  • Audio & visual monitoring of patient plate circuit
  • Combined or independent use of mono & bipolar functions enabled
  • Separate generators for monopolar and bipolar functions
  • Autoclavable accessories
  • Smooth bipolar cut for adhesiolysis & saline bipolar cut for TURP / endometrial abalation.
  • Relatively charring free whitish bipolar coagulation effects
  • Combination use of mono cut & bipolar coag for laparoscopic surgeries enabled
  • Monopolar Coagulation and Bipolar Coagulation active for use in all modes.
  • Separate switching to TUR mode by front panel control
  • Simultaneous use of Mono cut / Mono Coag through hand switch and Bipolar Cut & Bipolar Coag possible through footswitch.
  • Colour coded double pedal footswitch with cable and connector for Mono cut / coag and Bip cut.
  • Colour coded single pedal footswitch with cable and connector for Bip coag.
  • Reusable Handswitch surgical pencil with one flat electrode
  • Reusable Active electrodes handle with set of 4 electrodes & silicone rubber insulated cable
  • Reusable Insulated bipolar forceps with silicone rubber insulated cable
  • Silicone rubber patient plate with detachable connection cable and rubber strap with punched holes.

* Due to continuous improvement in design for compliance with International standards, the technical specifications are subject to alterations without notice.
